856H－856H (Stage II)

Operating weight	17,900 kg	39,463 lbs
Standard bucket	3.5 m³	4.6 yd³
Rated power	162 kW (217 hp / 220 ps) @ 2,200 rpm	162 kW (217 hp / 220 ps) @ 2,200 rpm
Maximum gross power	162 kW (217 hp / 220 ps) @ 2,200 rpm	162 kW (217 hp / 220 ps) @ 2,200 rpm
Rated load capacity	5,500 kg	12,125 lbs
Hydraulic cycle time	9.3 s	9.3 s
Raise time	5.8 s	5.8 s
Maximum travel speed	38 km/h	23.9 km/h
Tipping load-full turn	12,600 kg	27,778.24 lbs
Bucket breakout force	180.7 kN	40,623 lbf
Dump clearance, full height discharge	2,978 mm	9'9''
Dump reach, full height discharge	1,231 mm	4'
Model	Cummins 6LTAA9.3	Cummins 6LTAA9.3
Emissions	EPA Tier 2 / EU Stage II	EPA Tier 2 / EU Stage II
Aspiration	Turbocharged ? air-to-air intercooled	Turbocharged ? air-to-air intercooled
Length with bucket down	8,100 mm	26.57 ft.
Width over tires	2,750 mm	9'
Cab height	3,500 mm	11'6''
Turning radius, outside of tire	6,308 mm	20'8''
Bucket capacity	2.7-5.6 m³	3.5-7.3 yd³
General purpose bucket	3.5 m³	4.6 yd³
Light material bucket	5.6, 6.0 m³	7.3, 7.8 yd³
Rock bucket	2.7, 3.0 m³	3.5, 3.9 yd³
Download Brochure

856H－856H (Stage IIIA)

Operating weight	18,100 kg	39,904 lbs
Standard bucket	3.5 m³	4.6 yd³
Rate power	162 kW (217 hp / 220 ps) @ 2,200 rpm	162 kW (217 hp / 220 ps) @ 2,200 rpm
Maximum gross power	162 kW (217 hp / 220 ps) @ 2,200 rpm	162 kW (217 hp / 220 ps) @ 2,200 rpm
Rated load capacity	5,500 kg	12,125 lbs
Hydraulic cycle time	9.4 s	9.4 s
Raise time	5.5 s	5.5 s
Maximum travel speed	38.6 km/h	24 mph
Tipping load-full turn	12,600 kg	27,778 lbs
Bucket breakout force	180.7 kN	40,623 lbf
Dump clearance, full height discharge	2,978 mm	9'9''
Dump reach, full height discharge	1,231 mm	4'
Model	Cummins QSL9.3	Cummins QSL9.3
Emissions	EPA Tier 3 / EU Stage III	EPA Tier 3 / EU Stage III
Aspiration	Turbocharged & air-to-air intercooled	Turbocharged & air-to-air intercooled
Length with bucket down	8,390 mm	27'6''
Width over tires	2,750 mm	9'
Cab height	3,500 mm	11'6''
Turning radius, outside of tire	6,207 mm	20'4''
Bucket capacity	2.7-5.6 m³	3.5-7.3 yd³
General Purpose	3.5 m³	4.6 yd³
Light material	5.6 , 6.0 m³	7.3 , 7.8 yd³
Heavy-rock	2.7 , 3.0 m³	3.5 , 3.9 yd³
Download Brochure

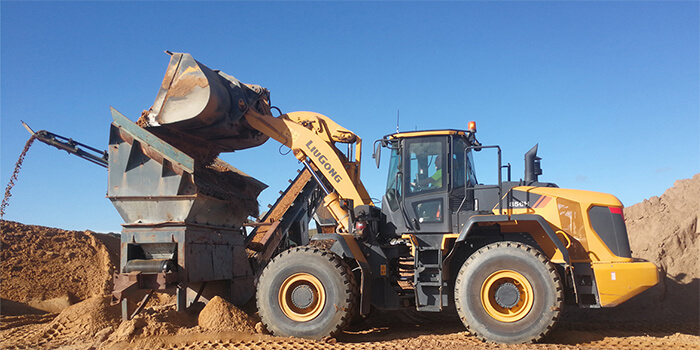

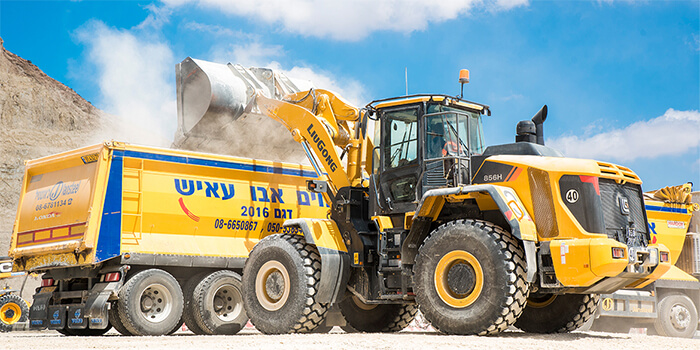

856H－856H (Stage V)

Operating weight	20,150 kg	44,423 lbs
Standard bucket	3.2 m³	4.19 yd³
Rated power	168 kW (225 hp / 228 ps) @ 2,000 rpm	168 kW (225 hp / 228 ps) @ 2,000 rpm
Maximum gross power	183 kW (245 hp / 248 ps) @ 1,700 rpm	183 kW (245 hp / 248 ps) @ 1,700 rpm
Rated load	5,500 kg	12,125 lbs
Total cycle time	10.2 s	10.2 s
Raise time	5.3 s	5.3 s
Maximum travel speed	38 km/h	23.6 mph
Tipping load-full turn	13,647 kg	30,086 lbs
Bucket breakout force	153 kN	34,396 lbf
Dump clearance, full height discharge	2,862 mm	9'5''
Dump reach, full height discharge	1,207 mm	3'12''
Model	Cummins B6.7	Cummins B6.7
Emissions	EU Stage V	EU Stage V
Aspiration	Turbocharged & air-to-air intercooled	Turbocharged & air-to-air intercooled
Length with bucket down	8,303 mm	27'3''
Width over tires	2,750 mm	9'
Cab height	3,450 mm	11'4''
Turning radius, outside of tire	6,195 mm	20'4''
Bucket capacity	3.0-6.0 m³	3.9-7.8 yd³
General purpose bucket:	3.2 m³	4.2 yd³
Light material bucket	5.6 m³	7.3 yd³
Rock bucket	2.5, 2.7, 3.0 m³	3.3, 3.5, 3.9 yd³
